High Accuracy Digital Pressure Gauge with Display

Product Categories
Changsha Taihe Electronic Equipment Co., Ltd.
Contact Now

High Accuracy Digital Pressure Gauge with Display

Brand Name : CSPPM

Model Number : PPM-T9101

Certification : CE

Place of Origin : China

MOQ : 1 PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : Standard export packing, including instructions and certificate

Pressure range : 0 ~ 250 MPa

Accuracy : 0.5%FS

Absolute source impedance (250VDC) : 50M Omega

Long term stability (1 year) : + 0.25%Span

Overload pressure : 1.5Double full range

Destructive pressure : 5Double full range

Compensation temperature : -20 ~ 85 C

working temperature : -40 ~ 85 C

Storage temperature : -40 ~ 85 C

Protection level : IP65 Wireless Coaxial Transmitter and Receiver

Contact Now

Product Introduction:

Metal strain-type pressure transmitter adopts high-strength stainless steel elastomer as the substrate. It uses mature strain gauge technology and is fully welded and sealed in a stainless steel housing. It has a wide applicable temperature range; good long-term stability, low power consumption, small hysteresis error, and repeat Good sex and other characteristics. It is resistant to frequent vibration and shock, and it is overloaded by more than 5 times of pressure. Dimensions can be customized.

Applications :

Petroleum, chemical, water conservancy, metallurgy, power
Light industry, textile, building materials, hydrogeology, Food, medicine,

environmental protection and other industries , Pressure measurement of gas,

liquid and steam in industrial field monitoring and control.

Technical Parameters :

Product Name Fire Fighting OLED 0.96 inch ultra low power display Wireless Pressure Gauge
PARAMETERS VALUES
Accuracy (including nonlinearity, hysteresis and repeatability) 0.5%
Long term stability (1 year) + 0.25%Span
Absolute source impedance (250VDC) 50M Omega
Overload pressure 1.5Double full range
Destructive pressure 5Double full range
Compensation temperature -20 ~ 85 C
working temperature -40 ~ 85 C
Storage temperature -40 ~ 85 C
Protection level IP65
Power supply 3.6V high energy lithium battery
Display

OLED 0.96 inch ultra low power display
Sending interval 1min ~ 9999min can be set
Project content Parameter index
Accuracy (including nonlinearity, hysteresis and repeatability) 0.5%
Long term stability (1 year) + 0.25%Span

Definition of wiring:

Direct outgoing
2-wire system 3-wire system
High Accuracy Digital Pressure Gauge with Display Power supply red red
Negative power black black
Signal positive 一 green

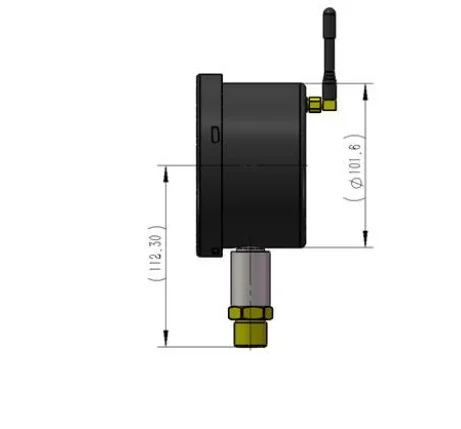

Dimensions in mm :

High Accuracy Digital Pressure Gauge with Display
